27SiMn Quenched & Tempered Steel Pipe Supplier

Q: What is the main difference between normalized 27SiMn and quenched & tempered (Q&T) 27SiMn pipes?

Normalized 27SiMn offers moderate yield strength (~500 MPa) suitable for general structural tubing. Quenched & Tempered (Q&T) 27SiMn increases yield strength to >= 835 MPa and significantly boosts impact energy, making it essential for high-pressure hydraulic cylinders.

Discover how sourcing factory-direct 27SiMn quenched and tempered steel pipes from https://www.rui-xiangsteel.com/about-us exceptional yield strength (≥835 MPa), high impact toughness, and optimal machinability for demanding hydraulic and mechanical engineering applications.

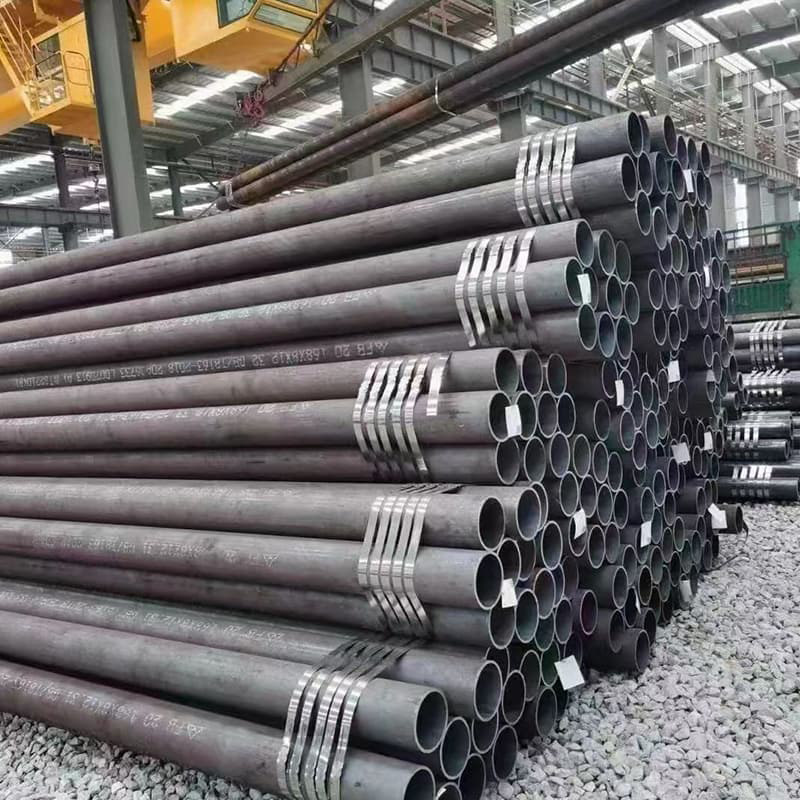

High-strength 27SiMn quenched and tempered seamless steel pipes stacked at Shandong Ruixiang Steel Group factory warehouse
Bulk stock of 27SiMn quenched and tempered seamless steel pipes ready for global B2B delivery at Ruixiang Steel.

Engineering Overview: Why 27SiMn Q&T Steel Pipe Dominates Heavy Machinery

In heavy hydraulic machinery, subterranean mining props, crane booms, and automotive axle tubes, structural components must endure extreme cyclic pressure, severe bending moments, and harsh mechanical wear. Standard normalized carbon steel tubing (such as 20# or 45#) often fails under high structural stress. Sourcing a high-performance 27simn quenched and tempered steel pipe offers the ideal engineering solution by delivering superior tensile strength without adding dead weight to structural assemblies.

27SiMn is a specialized low-alloy high-strength steel grade where Silicon (Si) and Manganese (Mn) are precisely balanced to elevate hardenability and solid-solution strength. When subjected to liquid quenching followed by high-temperature tempering (Q&T), the steel shifts from a raw hot-rolled ferrite-perlite structure into a tempered sorbite microstructure. This phase transformation provides a remarkable combination of high yield boundary values, structural toughness, and resistance to fatigue cracking.

Metallurgical Dynamics of Quenching & Tempering (Q&T)

The Quenched and Tempered (Q&T) thermal cycle is what transforms raw 27SiMn hollow bars into structural powerhouses. During the quenching stage, the pipe is heated above its upper critical transformation temperature ($A_{c3}$, typically around 850°C–880°C) to fully austenitize the matrix, followed by rapid water or polymer immersion cooling to freeze the structure into hard, needle-like martensite. Subsequent tempering between 540°C and 600°C relieves internal quenching stresses and precipitates fine carbides, yielding a highly stable tempered sorbite phase.

27SiMn Q&T Mechanical & Chemical Specification Matrix

Technical Property	Hot-Rolled As-Rolled Condition	Quenched & Tempered (Q&T) Condition	Engineering Benefit
Yield Strength ($R_{eH}$)	≥ 500 MPa	≥ 835 MPa	Over 65% increase in load-bearing pressure threshold.
Tensile Strength ($R_m$)	≥ 735 MPa	≥ 980 MPa	Prevents hydraulic cylinder wall bulging under shock loads.
Elongation ($A_5$)	≥ 12%	≥ 12% – 15%	Maintains high ductility despite massive strength increases.
Impact Energy ($A_k_v$ at 20°C)	Modest (≤ 27 J)	≥ 39 J	High energy absorption prevents brittle catastrophic fracture.
Hardness Range	180 – 220 HBW	240 – 300 HBW (Customizable)	Enhanced wear resistance during honing and deep hole drilling.

Factory Advantage: Shandong Ruixiang Steel Group employs continuous roller-hearth heat treatment furnaces equipped with computer-controlled temperature profiling. This guarantees minimal dimensional distortion, uniform wall hardness (±15 HBW variance), and zero surface decarburization across the entire length of the pipe.

Primary Industrial Applications for 27SiMn Q&T Pipes

Due to its exceptional strength-to-weight ratio and precise dimensional stability, 27SiMn quenched and tempered steel pipe is widely deployed across critical heavy industry sectors:

Underground Coal Mining Hydraulic Pillars: Serves as the outer barrel and inner telescopic leg for heavy hydraulic roof supports operating under immense geological pressure.
Hydraulic Cylinder Barrels: Ideal for honing or skiving/roller burnishing to produce mirror-like inner diameter (ID) finishes for excavator, crane, and dump truck lift rams.
Heavy Mechanical Structural Tubing: Used in drill collars, crane boom struts, agricultural equipment frames, and high-pressure fluid conveyance lines.

Fig 2: State-of-the-art continuous Q&T heat treatment furnace ensuring uniform mechanical properties across 27SiMn pipe walls.

Why Partner with Shandong Ruixiang Steel Group?

Procuring 27SiMn Q&T pipes directly from a certified Chinese manufacturer gives global buyers distinct operational and commercial edges:

Strict Mill Certification (EN 10204 3.1 MTC): Every dispatch is accompanied by authentic mill test certificates validating chemical ladle analysis, tensile yield charts, impact toughness curves, and ultrasonic testing reports.
Custom ID/OD Machining & Honing: We provide value-added deep hole boring, ID honing (Ra ≤ 0.4 μm), chamfering, and custom length cutting to supply installation-ready cylinder blanks.
Global Logistics & Seaworthy Packaging: Pipes are treated with anti-rust oil, capped with end protectors, bundled with steel straps, and wrapped in heavy VCI plastic for safe ocean transport.

Quality Assurance & Export Packaging

At Ruixiang Steel Group, quality control extends beyond production. Every 27SiMn quenched and tempered pipe undergoes full-length Eddy Current (ET) and Ultrasonic Flaw Detection (UT) according to ISO or ASTM standards to eliminate internal voids, micro-cracks, and wall thickness eccentricities.

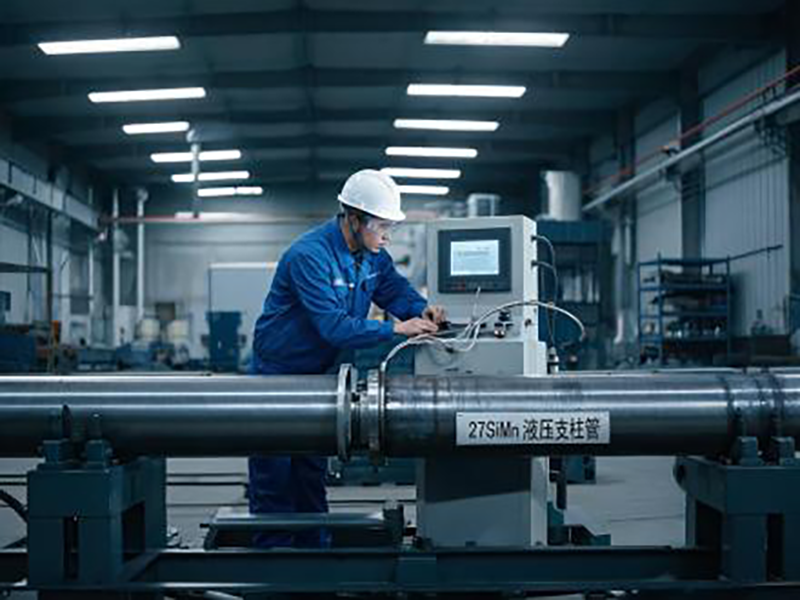

Ultrasonic flaw detection and hydrostatic testing applied to all Ruixiang 27SiMn Q&T pipe orders.

Frequently Asked Questions (FAQ) - 27SiMn Q&T Tubing

Q1: What is the main difference between normalized 27SiMn and quenched & tempered (Q&T) 27SiMn pipes?

A1: Normalized 27SiMn offers moderate yield strength (∼500 MPa) suitable for general structural tubing. Quenched & Tempered (Q&T) 27SiMn increases yield strength to ≥835 MPa and significantly boosts impact energy, making it essential for high-pressure hydraulic cylinders.

Q2: Can Ruixiang supply honed 27SiMn Q&T pipes ready for hydraulic cylinder assembly?

A2: Yes. Ruixiang provides complete in-house deep-hole boring, skiving, and honing services to achieve an internal surface roughness of Ra ≤ 0.2 to 0.4 μm with strict H8/H9 dimensional tolerances.

Request a Direct Quote for 27SiMn Q&T Steel Pipes

Upgrade your machinery performance with factory-direct 27SiMn quenched and tempered steel pipes. Contact Shandong Ruixiang Steel Group's technical export sales team today for current price schedules, custom dimensions, or MTC documentation.
