The Comprehensive Guide to Stainless Steel Pipes: Grades, Types, and Industrial Applications

Click:3Edit: Ruixiang SteelTime:2026-04-06 22:31:44

In the realm of industrial infrastructure, stainless steel pipes are indispensable. Known for their exceptional corrosion resistance, high-temperature tolerance, and structural integrity, these pipes serve as the "arteries" of chemical plants, food processing facilities, and modern skyscrapers.

At Ruixiang Steel Group, we leverage over a decade of manufacturing excellence to provide ISO 9001-certified piping solutions that meet rigorous global standards.

Extensive inventory of high-quality stainless steel pipes at Ruixiang Steel warehouse

1. Seamless vs. Welded Stainless Steel Pipes: Which Do You Need?

Understanding the manufacturing process is the first step in selecting the right pipe for your project. The two primary types are:

Seamless Stainless Steel Pipe (SMLS)

Manufactured through extrusion or cold drawing, seamless pipes have no weld seam. This makes them capable of withstanding higher pressures and temperatures. Ideal for: Oil and gas transportation, high-pressure boilers, and hydraulic systems.

Welded Stainless Steel Pipe (ERW/EFW)

Produced by rolling steel strips and welding the seam. Modern welding technology ensures that the seam's strength is nearly equal to the base metal. Ideal for: Decorative structures, low-pressure fluid transport, and architectural handrails.

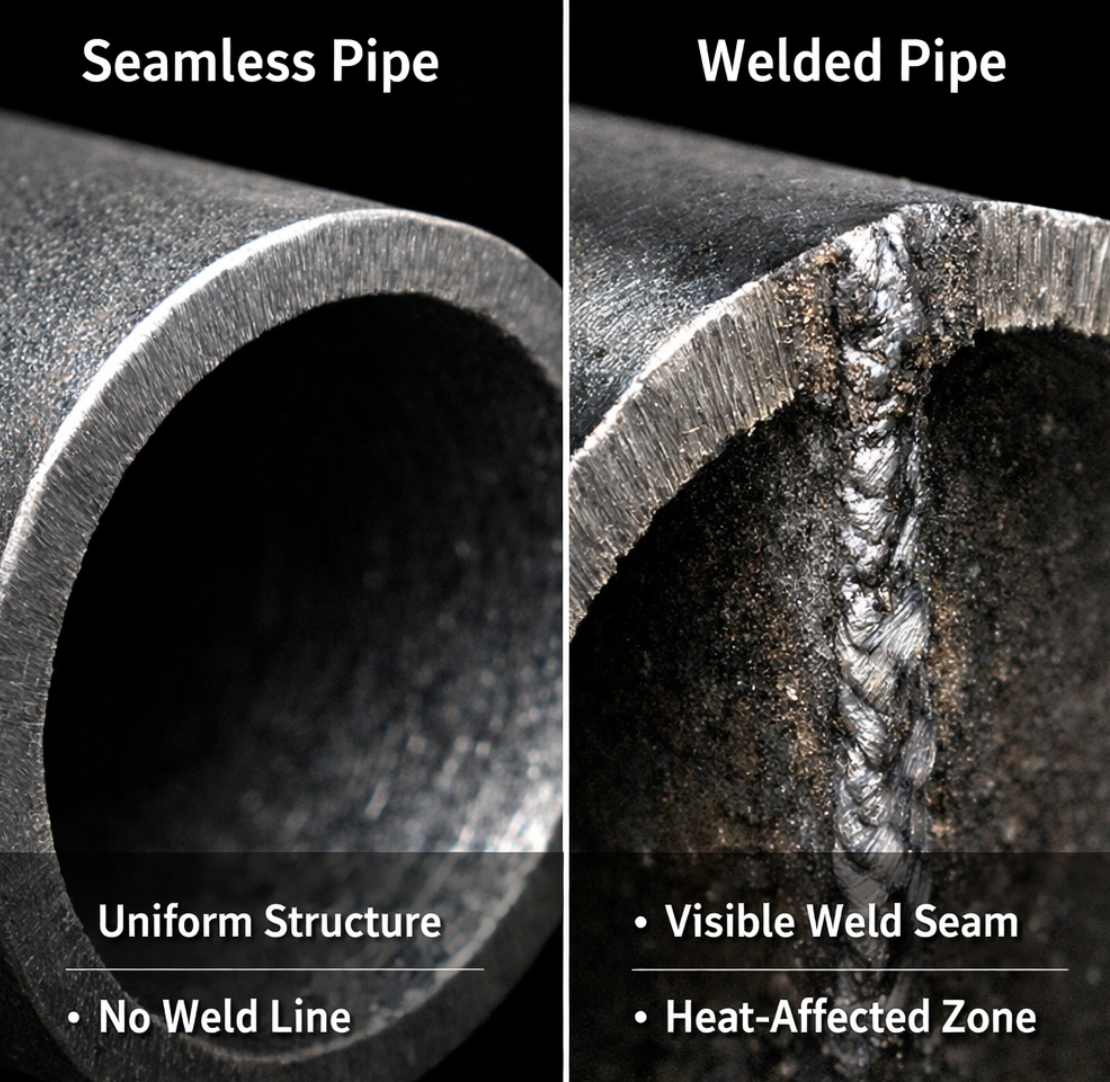

Seamless vs welded stainless steel pipe cross-section comparison

2. Common Material Grades and Their Strengths

Material chemistry dictates performance. Here are the most sought-after grades at Ruixiang Steel:

  • Grade 304/304L: The all-rounder. Excellent corrosion resistance and value, perfect for food grade applications and general construction.
  • Grade 316/316L: The "Marine Grade." Enhanced with Molybdenum, it resists chloride pitting, making it essential for coastal projects and chemical processing.
  • Duplex & Super Duplex (e.g., 2205): Offers dual-phase microstructure for extreme strength and stress corrosion cracking resistance.

3. Technical Specifications: ASTM & International Standards

Quality in the steel industry is measured by adherence to standards. We ensure our products meet:

  • ASTM A312, A213, A269, A554
  • Specification Details
    Outer Diameter (OD) 6mm - 2500mm (Customizable)
    Wall Thickness (WT) 0.5mm - 150mm (SCH 5S to SCH XXS)
    Length Single Random, Double Random, or Fixed (up to 12m)

    4. Key Applications Across Industries

    Our stainless steel tubing solutions are engineered for versatility:

    • Oil & Gas: High-pressure pipelines and subsea equipment.
    • Food & Beverage: Sanitary tubing for milk, juice, and brewery lines.
    • Pharmaceuticals: High-purity pipes with mirror-polished internal surfaces.
    • Construction: Structural supports, railings, and aesthetic facades.

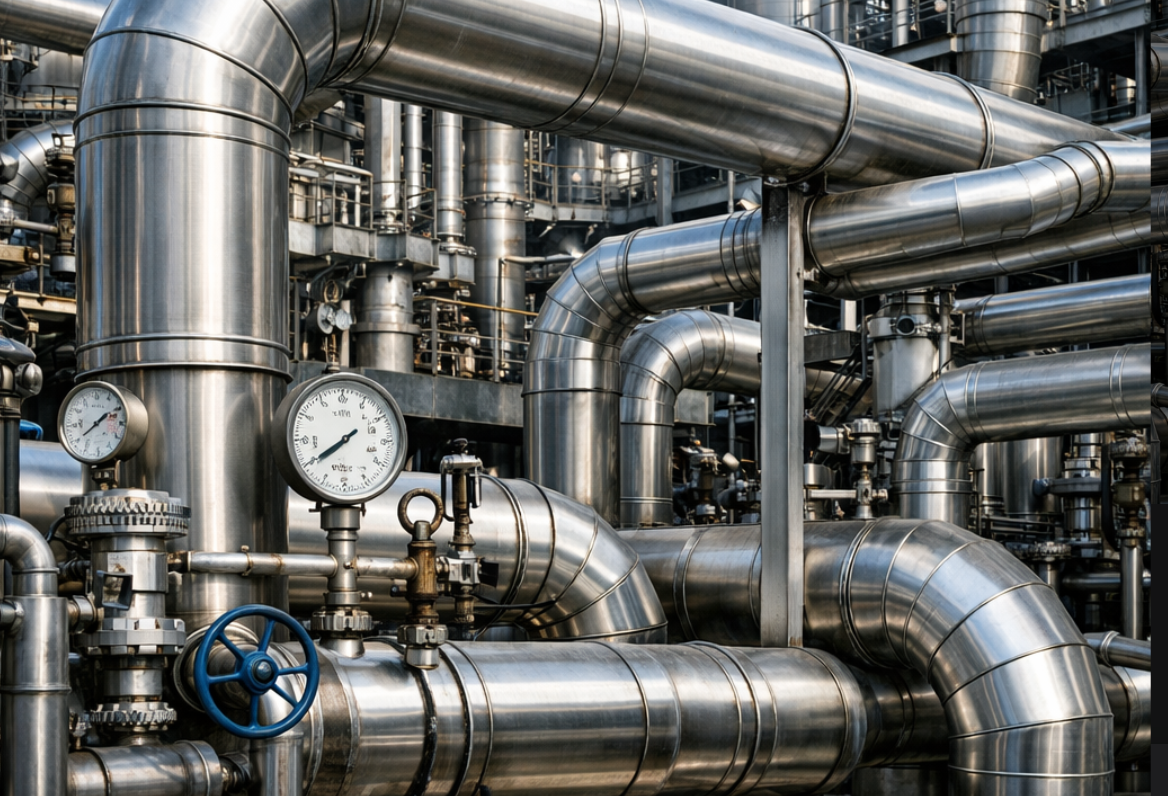

      Industrial application of 316L stainless steel pipes in a chemical processing plant

    5. Quality Assurance: Why Choose Ruixiang Steel?

    As a leading stainless steel pipe supplier in China, we prioritize transparency and reliability:

    • 100% Traceability: Every pipe comes with a Mill Test Certificate (MTC) according to EN 10204 3.1.
    • Advanced Testing: We perform Eddy Current, Ultrasonic, and Hydrostatic testing to ensure zero defects.
    • Global Logistics: Seaworthy packaging with end caps and protective wrapping to ensure safe arrival.

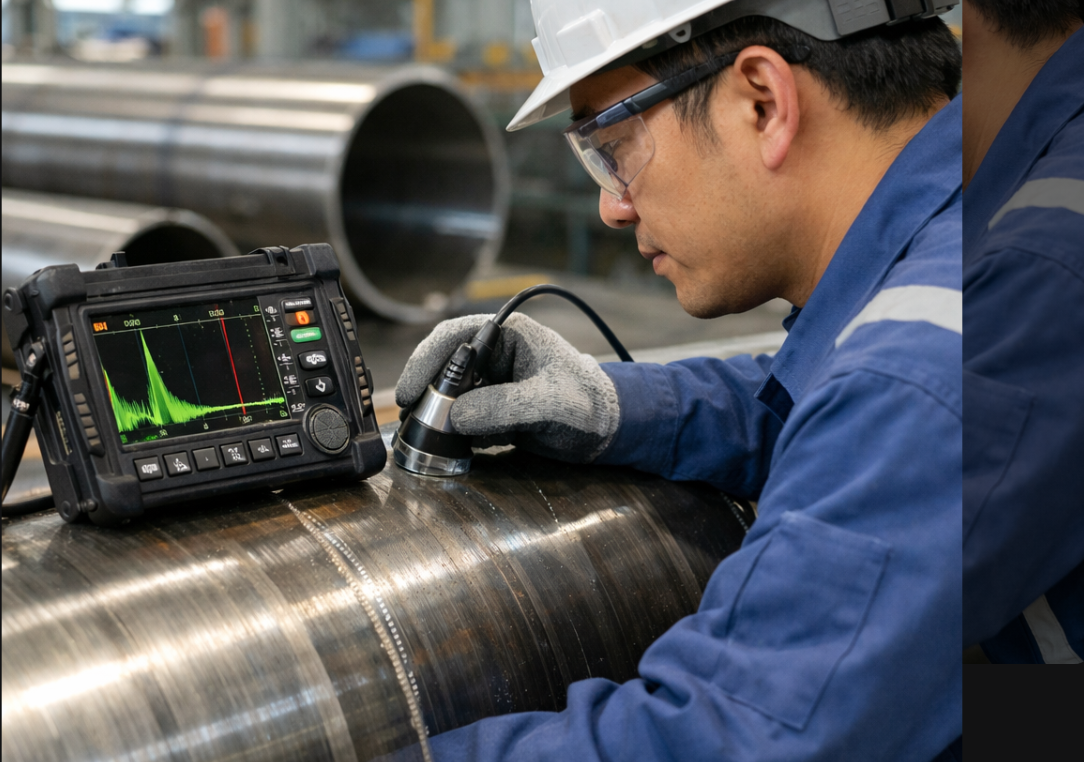

      Rigorous quality testing of stainless steel pipes including ultrasonic inspection

    Frequently Asked Questions (FAQ)

    Q: What is the difference between Pipe and Tube?

    A: "Pipe" is generally used for fluid transport and measured by Nominal Pipe Size (NPS). "Tube" is used for structural or heat exchange purposes and measured by actual Outer Diameter (OD).

    Q: Can you provide polished internal surfaces?

    A: Yes, we offer mechanical and electro-polishing for sanitary and pharmaceutical applications, reaching Ra < 0.4μm.
