hot-rolled steel plate

Carbon steel is an iron-carbon alloy with carbon content ranging from 0.0218% to 2.11%. Also known as carbon steel. Generally also contains a small amount of silicon, manganese, sulfur, phosphorus. The higher the carbon content of general carbon steel, the greater the hardness, the higher the strength, but the lower the plasticity.

Cases:

Enquiry

PDF Download

Heavy-Duty Hot Rolled Steel Plates

Name: Hot Rolled Steel Plate
Brand: Ruixiang Steel
Availability: InStock

Ruixiang Steel provides high-integrity Hot Rolled Plates (HR) engineered for shipbuilding, bridge construction, and heavy machinery. Compliant with ASTM A36, S355JR, and Q345B, our plates deliver the strength required for critical infrastructure.

Precision Processing & Fabrication

Maximize your project efficiency with our in-house value-added services:

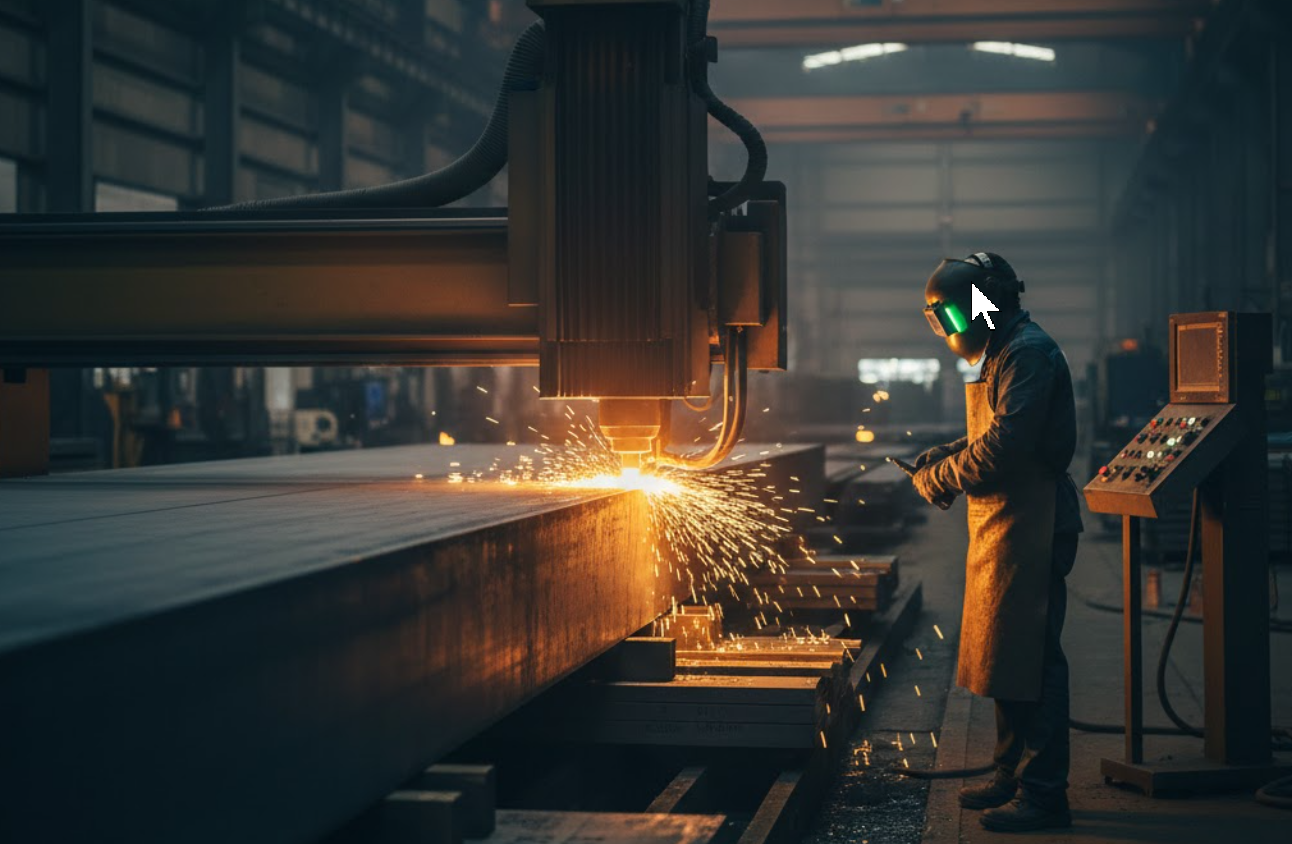

🔥 Flame & Plasma Cutting

CNC precision cutting to your specific CAD drawings and dimensions.

🛡️ Surface Pre-treatment

Shot blasting to Sa2.5 grade followed by zinc-rich anti-corrosion priming.

📐 Edge Preparation

Professional beveling and edge milling to facilitate immediate site welding.

🔍 Quality Inspection

Full Ultrasonic Testing (UT) for heavy plates to ensure zero internal defects.

Technical Data Sheet

Parameter	Specifications
Standards	ASTM, DIN, JIS, EN, GB, AISI, SUS
Available Grades	Q235, Q345B, S235JR, S355JR, ASTM A36, A572 Gr.50, 45#, 16Mn
Thickness Range	2.75mm – 200mm (Heavy Structural Grade)
Plate Dimensions	Width: 1000mm-2500mm \| Length: 3000mm-12000mm
Surface Finish	Natural (Mill Finish), Pickled, Painted, Galvanized, or Checkered
Application	Machinery bases, bridge foundations, road plates, shipbuilding panels.

Frequently Asked Questions

Q: What thickness tolerances do you provide for heavy plates?

A: We strictly adhere to ASTM A6 and EN 10029 Class B/C. Typical tolerances range from +/- 0.3mm to 0.8mm depending on thickness. We use high-precision leveling machines to ensure optimal flatness for laser/flame cutting.

Q: How do you ensure the quality of extra-thick (100mm+) plates?

A: For engineering projects requiring heavy plates up to 200mm, we perform Ultrasonic Testing (UT) as per ASTM A435/A578 to verify internal soundness and prevent lamination issues during subsequent fabrication.
